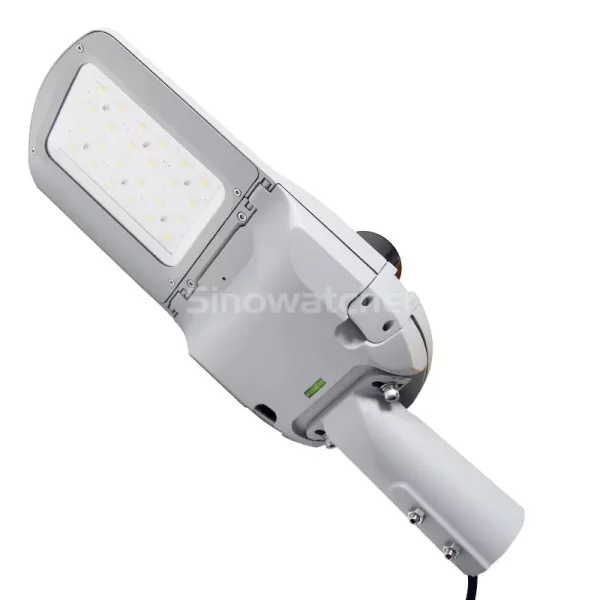

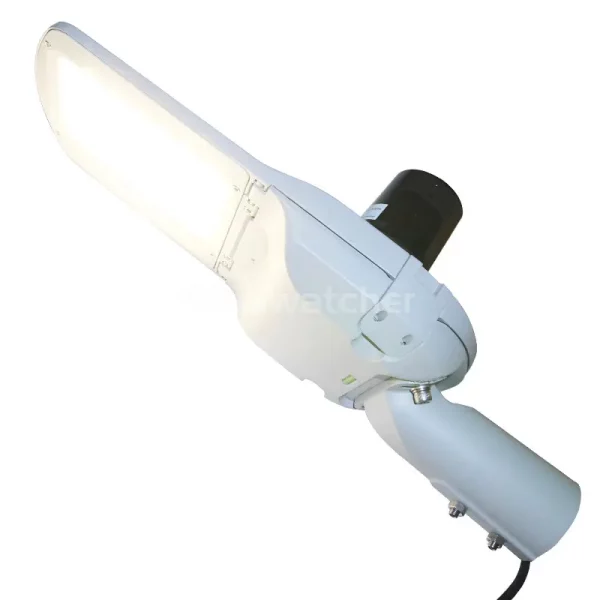

X10 Series LED Street Light
- Patent private mould, integrated die-casting AL.
- High efficiency, 130-170lm/w available.
- Professional glare-free lens, 60°/90°/120°/T2M/T3M/T4M.
- V dimming/time control/light sensor/IOT control available. Flat
- honeycomb design, good heat dissipation.
- Gradienter design: easy for horizontal installation.
- Snap-on type installation, tool-free disassembly.
- Tempered glass panel, no glue fixed.
- IP66.
Share to:
| X10 Series LED Street Light | |
| Power Options | 50W / 75W / 100W / 150W / 200W |
| Input Voltage | AC100V-277V, 50Hz~60Hz |
| LED Chips | SMD5050 / SMD3030 |
| Correlated Color Temperature | 3000K / 4000K / 5000K / 5700K / 6500K |
| Smart Interface | NEMA & Zhaga socket compatible |
| Dimming Support | 0-10V / PWM / DALI |
| Working Voltage | AC85V-265V, 50/60Hz or DC12-24V / AC42V Optional |
| Power Factor | ≥0.95 |
| Ingress Protection Grade | IP66 |
| Impact resistance | IK08 |
| Luminous Efficiency | 170 lm/w |
| Housing Material | Patented die-cast aluminum (ADC12) |
| Working Temperature | -40°C to +50°C |
| Warranty | 5 years |
Major Highways & Expressways:
Using high-wattage models (150W-200W), this Outdoor Street Light provides powerful central median or double-sided lighting essential for high-speed safety. Its high CRI (>70) ensures drivers can accurately identify road hazards and signage from a distance.
Urban Streets & Residential Areas:
For sidewalks and minor roads, the 50W-75W Smart LED Street Light models offer precise, glare-free illumination. The smart dimming capabilities allow lighting to automatically dim during low-traffic hours, significantly reducing light pollution and energy waste.
Parking Lots & Public Plazas:
The X10 Series is versatile enough for double-arm lighting poles in large open spaces. As a robust Outdoor Street Light, it enhances security in parking lots, ensuring pedestrians feel safe walking to their vehicles at night.
- Mounting Shafts
- Smart Controllers: Compatible NEMA/Zhaga sockets
Redefine Urban Illumination with Intelligent Efficiency
The Sinowatcher X10 Series Smart LED Street Light brings clarity and safety to every corner of the city. Engineered for roadway efficiency, this cutting-edge Outdoor Street Light is designed to replace outdated, energy-draining fixtures with a high-performance, future-ready solution. By delivering a stunning luminous efficiency, the X10 Series drastically reduces municipal energy costs while providing the bright, uniform illumination drivers and pedestrians need to navigate safely. Whether illuminating a busy highway or a quiet residential sidewalk, this Smart LED Street Light ensures optimal visibility, reducing accidents and enhancing community security, also, the unit features a patented die-cast aluminum housing with a smooth, self-cleaning surface, preventing dust and debris buildup that can dim output over time. As a robust Outdoor Street Light, it is built to withstand the elements, ensuring reliable operation for decades.
Advantages of Sinowatcher X10 Series LED Street Light
At the heart of this Outdoor Street Light are high-efficiency SMD 5050/3030 LEDs, delivering between 8,000 to 36,000 lumens depending on the model. This incredible output of 170 lm/W ensures that cities can achieve brighter streets with significantly less power, making it a premier choice for sustainable urban planning.
The X10 Series is more than just a light; it is a Smart LED Street Light ready for the smart cities of tomorrow. It features NEMA and Zhaga socket compatibility, allowing for seamless integration with intelligent control systems. Additionally, it supports 0-10V, PWM, and DALI dimming, giving city planners precise control over illumination levels to maximize energy savings.
An Outdoor Street Light must endure harsh conditions. The X10 Series operates reliably in temperatures from -40°C to +50°C and boasts an IP66 waterproof rating alongside IK08 impact resistance. Its tempered glass lens, with optional self-cleaning coating, ensures consistent performance even in dusty or wet environments.
Designed for easy upkeep, this Smart LED Street Light features a tool-free clip-on driver box, simplifying installation and repairs. Backed by a 5-year warranty and a lifespan of 50,000 hours, it provides a “set it and forget it” solution that reduces long-term operational headaches.
