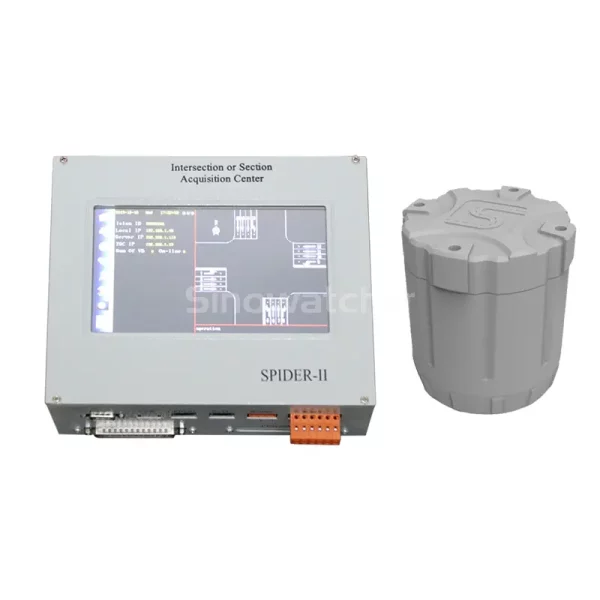

Wireless Vehicle Detection System
Wireless Vehicle Detection System
- Traffic control applications, also on intersection.
- Parking management.
- Vehicle counting and classification.
- All applications linked to detection of vehicle passage or stop.
- Single channel or two-channel detector.
- Compliant with CE, RoHS.
- Reduced installation costs.
- Easy installation & maintenance.
- Powerful wireless signal (18dbm).
- Long battery life of 5 years.
- High detection accuracy rate.
Share to:
| Wireless Vehicle Detection (WVD) System | |
| Wireless Frequency | 2.4GHz. |
| Communication Distance | Up to 100 mts. |
| Max. Qty. Detectors | 96 (16 detectors per Router (Max 6 units)). |
| Output Relays | 240V/5A |
| Input Voltage | AC85-265V, 50/60HZ, 24V DC or 12V DC. |
| 5V – Solar Panel Acquisition Center Device (ADC) | |
| DC 5V – Solar Panel Vehicle Detector Router (VDR) | |
| 3 years Built-in Battery Wireless Vehicle Detector | |
| Ingress Protection Grade | IP68 |
| Detection Range | Omni-Directional (Up to 50 cm from detector top surface) |
| Radiated Power | +18dBm |
| Operating Temperature | -40°C to +80°C |
| Warranty | 1 year / 3 years ( VDR + ADC / WVD) |
| Housing Material | Polycarbonate(PC)–UV-resistant. |
The Wireless Traffic Signal LED Vehicle Detection System is an extremely versatile solution designed for real-time data acquisition, delivering reliable information for Intelligent Transportation Systems.
Adaptive and Actuated Traffic Control
The Wireless Vehicle Detection (WVD) provides the critical real-time data necessary for semi-actuated, Self-actuated, and Adaptive Traffic Control modes. By using the embedded geomagnetic sensor data on vehicle presence, occupancy, and speed, the vehicle detection system automatically adjusts signal timing. This leads to a significant reduction in delays, minimized congestion, and improved overall traffic flow efficiency.
Comprehensive Traffic Monitoring and Data Analysis
The Wireless Vehicle Detection (WVD) acts as a comprehensive geomagnetic sensor solution for collecting essential traffic parameters, including speed, traffic flow, and vehicle length. This information provides the foundation for traffic guidance systems and offers essential data for urban traffic organization optimization and infrastructure planning. The robust vehicle detection system ensures accurate and continuous data acquisition, enabling transportation agencies to make informed, data-driven decisions.
Mounting Brackets

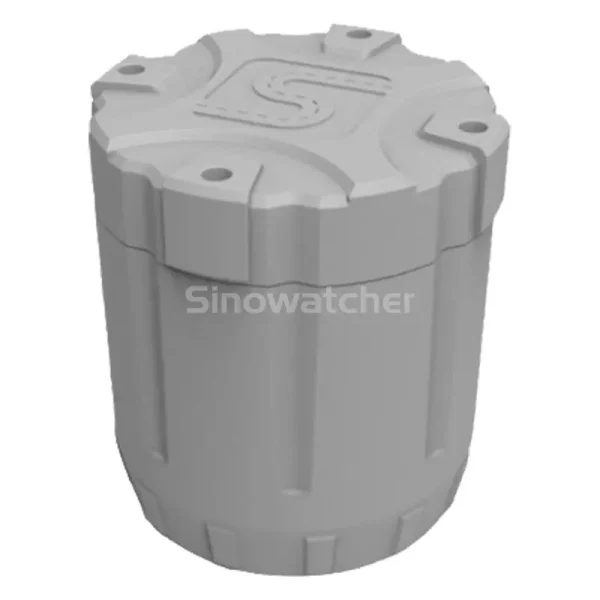

Wireless Sensor

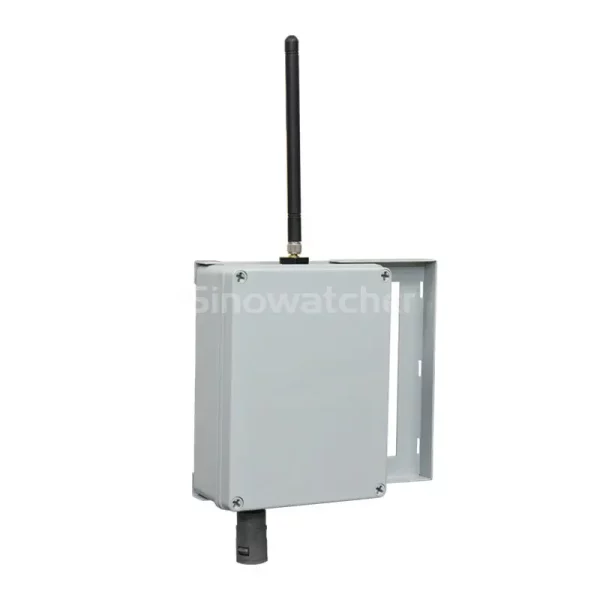

Router – Access Point (VDR)

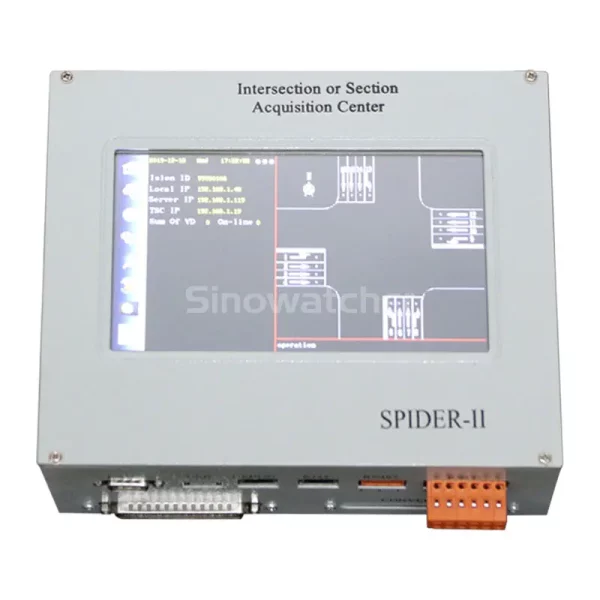

Data Acquisition Device (ADC)
WVD Installation Kit
Sinowatcher WVD: High-Accuracy Vehicle Detection System
Sinowatcher’s Wireless Vehicle Detection System (WVD) Technology for Reliable Traffic Data

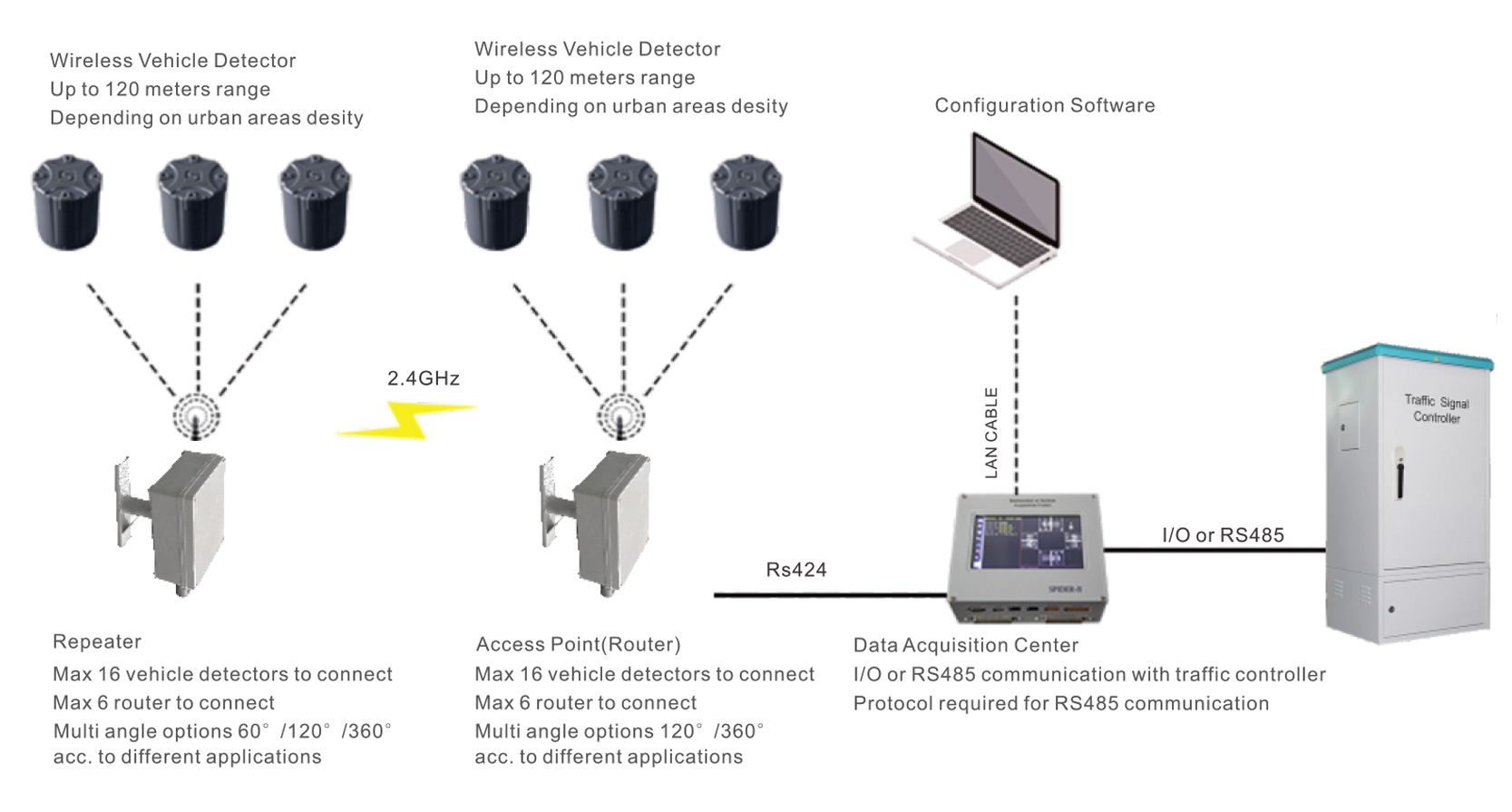

The Wireless Vehicle Detection System (WVD) is an advanced solution extensively used in Traffic Management Systems. The core component, the Wireless Sensor, utilizes geomagnetic sensor technology to detect the presence and movement of vehicles by measuring changes in the Earth’s magnetic field. The system is fully composed of the Wireless Vehicle Detector (WVD), Vehicle Detector Router(VDR), Acquisition Center Device (ACD), and Management Client Software (MCS), all working together as a cohesive vehicle detection system. The WVD system offers simple integration via I/O Ports, Rs-232, Rs-485, and a Built-in Webserver for easy data management. Furthermore, the system is designed for easy installation, removable detectors, and free maintenance, a key benefit of a wireless geomagnetic sensor system.
Advantages of Sinowatcher Wireless Vehicle Detection System(WVD)
High-precision geomagnetic sensor technology powers this vehicle detection system, providing real-time traffic data for adaptive signal control and congestion management.
Adaptability to Extreme Operating Temperature
The system operates reliably over a wide temperature range, with the detector’s working temperature ranging from -40°C to +80°C.
Low Power, Energy-Efficient Sensor
The wireless geomagnetic sensor (WVD) has an efficient, long battery life of more than 3 years.
High-Accuracy Data Collection
The vehicle detection system delivers high-accuracy traffic data, including 97% for Traffic Flow, 98% for Occupancy, and 95% for Speed.
Durable and Robust Protection
The system’s Wireless Vehicle Detector is rated IP68. This robust design protects the embedded geomagnetic sensor from harsh environmental conditions.
Flexible Communication & Customization
The system communicates using 2.4 GHz ISM, with a distance of up to 100 meters without repeaters. The product is built with system partners in mind, supporting flexible shipment options and deep customization capabilities.
