Radar Speed Display Sign
- Multiple power options: solar DC 12/24V, AC 85-265 V.
- 24 GHz Doppler radar for stable all-day vehicle speed detection.

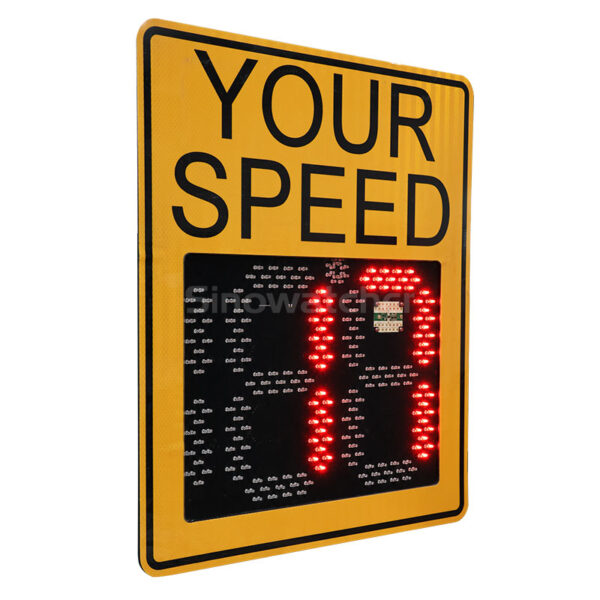

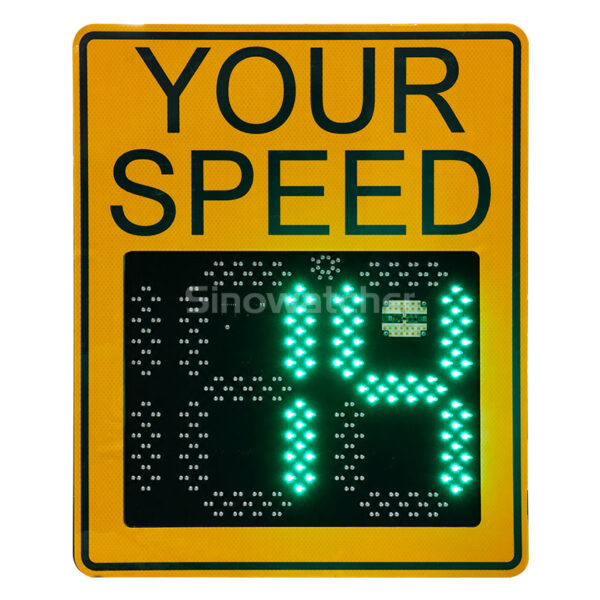

- Dual-color LED speed display: green within safe value and red when speeding.
- Maximum displayed speed up to 199 km/h with adjustable display hold time.
- Reflective film for high visibility up to 300 m.
- Weekday/weekend on/off scheduling through built-in LCD programming interface.
- Applications in schools, Construction zones, Residential streets, etc.
- Pole-mounted or vehicle-mounted installation options.
- Aluminum housing with resistance and durability.
Share to:
| Radar Speed Display Sign | |
| Diameter | φ 300mm |
| Speed Range | 10-250 km/h |
| Radar detection range | 100 m standard; 150 m / 200 m optional |
| Viewing Angle | ±30° |
| Operating Schedule | Weekday / weekend on-off time setting |
| Display Area | 360 mm (H) × 480 mm (W) |
| Display Colors | Red/green LED speed display |
| Solar Panel | 60 W / 80 W mono solar panel |
| Voltage Range | Solar powered DC 12/24 V or AC 85–265 V optional |
| Radar | 24.125 GHz Doppler |
| Housing Material | Aluminum |
- School Zones and Pedestrian Crossings
- Road Construction and Work Zone Speed Control
- Highway Ramps, Curves and Rural Road Sections
- Mounting screws & bolts
- Lock keys
Sinowatcher Radar Speed Display Sign
The Sinowatcher Radar Speed Display Sign uses 24.125 GHz Doppler radar to measure the speed of approaching vehicles and displays the detected speed in green or red according to the configured speed threshold. It is available with solar, DC, or AC power for permanent, portable, and vehicle-mounted traffic-calming applications.
Radar Speed Display Sign Advantages
features a high-brightness dual-colour LED display to deliver clear, long-distance speed readings, visible in strong sunlight, fog, rain and dark night conditions.
This radar speed signshows green within the safe limit and red when speeding, giving drivers immediate speed feedback that encourages them to slow down without enforcement.
This speed feedback sign runs on a solar panel with built-in battery, ensuring steady operation for several cloudy days and requiring no mains wiring on site.

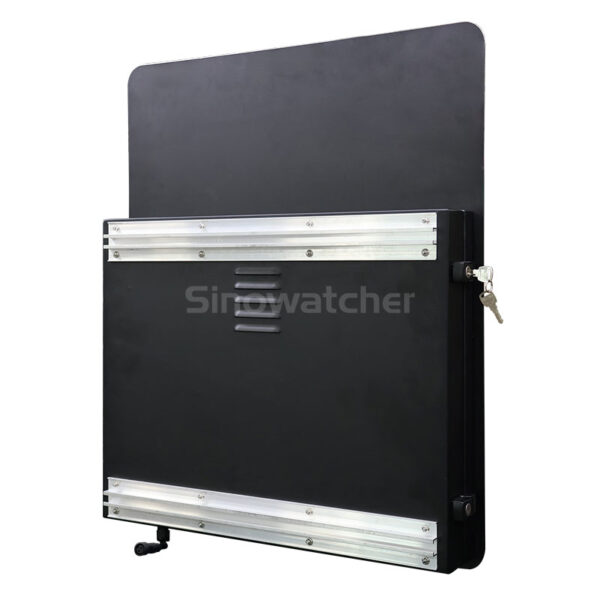

This radar speed signadopts a sealed aluminium housing with weatherproof and dustproof structure to adapt to all harsh outdoor conditions.
The built-in setting screen and pole, portable or vehicle mounting options of this speed feedback sign enable fast installation and simple relocation.
Radar Speed Display Sign?
Sinowatcher’s Radar Speed Display Sign is a complete, ready-to-install speed feedback sign that combines proven radar detection, a bright dual-colour display and reliable solar power in one unit. This radar speed sign comes with full engineering support and customisation options for display size, detection range and power configuration.
Radar Speed Display Sign FAQS
The standard radar range is 100 m, with optional 150 m and 200 m configurations.
Yes. The built-in screen allows authorised personnel to configure the speed threshold and weekday or weekend schedules.
The Radar Speed Sign supports solar-powered DC 12/24 V operation, with AC 85–265 V available as an option.
Yes. Pole-mounted, portable and vehicle-mounted configurations are available.
The displayed speed feedback changes from green to red when the configured threshold is exceeded.
