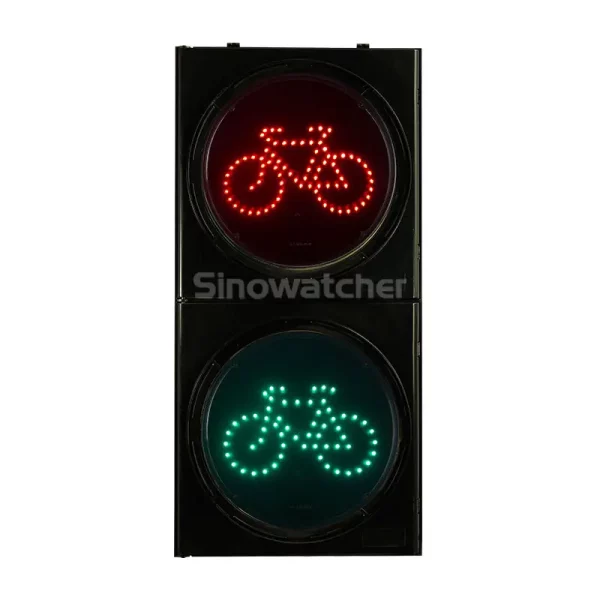

300mm Clear Lens RG Bicycle Traffic Signals
300mm Clear Lens RG Bicycle Traffic Signals
- Wide operating voltage.
- Transparent polycarbonate optical lens-impact resistant.
- Anti-phantom effect minimized, optimal viewing angle.
- High intensity LED light source-low energy consumption.
- 5mm LED (DIP).
- Long life cycle-more than 80,000 working hours.
- Highly durable polycarbonate housing, UV-light resistant.
- Modular design-easy installation and maintenance.
- Easy access using of snap-in open system.
- Fixation system with L-shaped/arm-shaped mounting brackets.
- Compliance with CE, EN12368, ISO9001.
Share to:
| 300mm Clear Lens RG Bicycle Traffic Signals Parameter | |
| Diameter | φ 300mm |
| LED Type | 5mm DIP |
| Optical Performance | Conform to EN12368 standard |
| View Distance | ≥500m |
| Input Voltage | AC 85 V-265 V,AC 42 V , DC 12-24 V |
| Power Factor | ＞ 0.9 |
| Ingress Protection | IP55 |
| Impact resistance | IK 08 and IR 3 |
| Working Temperature | -40℃ ~ +80℃ (Meet Class A,B,C acc. To EN12368) |
| Material of Lens/Housing | UV-stabilized polycarbonate |
| Color of Housing/visor/bracket | Black – standard, fir-green/yellow upon qty request |
Urban Intersections
The bike road signals provide clear and cost-effective control for mixed intersections with relatively low traffic volumes. Their long-distance visibility allows cyclists to respond quickly and safely, improving overall traffic efficiency while reducing power usage through low-energy consumption LEDs.
Campuses and Industrial Zones
On university campuses, in industrial parks, and in tourist areas, cycling is a common mode of commuting and sightseeing. Installing these bike road signals at key crossings ensures clear guidance and long-distance visibility even under bright daylight. Their low-energy consumption makes them suitable for continuous operation in eco-friendly environments.
Sun Visor: Made from UV-stabilized polycarbonate
L-Shaped Bracket: Made from galvanized cold-rolled steel.
Arm-shaped Bracket: Made from Aluminum
Wire Terminals: Available in Y/I-type configurations.
Wire Specifications: 18 AWG, 600V +105℃.
Terminal Block: Options include splice connectors or screw terminal blocks.
Sinowatcher’s RG Bike Traffic Signals
A Cost-Effective Solution for Simple Intersections
With the continuous advancement of urban green mobility initiatives, bicycle commuting has become increasingly popular. For non-motorized lanes at intersections with relatively low traffic volume, this 300mm clear lens RG bike traffic signals leverages the advantages of its modular design, allowing for the flexible reduction of a yellow bike traffic signals module without compromising the clarity of indications for cyclists. These bicycle traffic signals are designed to deliver long-distance visibility and low-energy consumption, ensuring smoother traffic flow and enhanced safety within the framework of the Intelligent Transportation System (ITS). This ensures a safer, more environmentally friendly travel experience and improved operational efficiency in urban settings. Better signaling, Better Traffic—creating a more seamless and efficient urban mobility ecosystem.
Advantages of Sinowatcher Bike Traffic Signals
Wide Voltage Adaptation
This bike traffic signals supports AC 85–265V, AC 42V, and DC 12–24V, ensuring seamless compatibility with urban power grids and solar-powered systems.
Adaptability to Extreme Operating Temperature
The bike traffic signals operates reliably over a wide temperature range, from -40℃ to +80℃.ensuring dependable performance in all weather conditions while maintaining long-distance visibility for cyclists.
Long-distance Visibility
The meticulously designed transparent polycarbonate optical lens offers cyclists the best viewing angle, minimizes the phantom effect, and ensures long-distance visibility of up to 500 meters.
High Brightness, Low- energy consumption LED
This bike road signals equips with 5mm DIP LEDs, providing high brightness with high low- energy consumption and an average lifespan of over 80,000 hours.
Highly Durable Polycarbonate Housing
High-quality polycarbonate material, innovative housing design, and excellent craftsmanship combine to provide exceptional UV resistance, impact strength, and Ingress Protection (IP) capabilities for this bike road signals.
Easy Installation and Maintenance
Modular design for simple installation. The sprang open system of this bike road signals ensures easy access, and the L-shaped/arm-shaped mounting brackets provide a secure fixation system.
