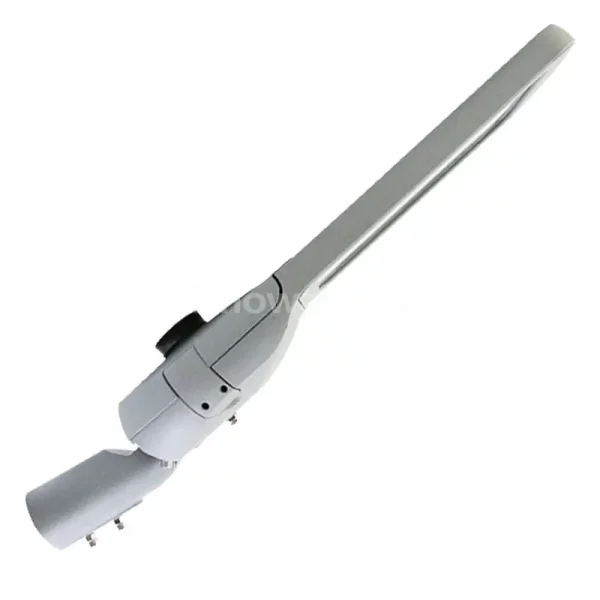

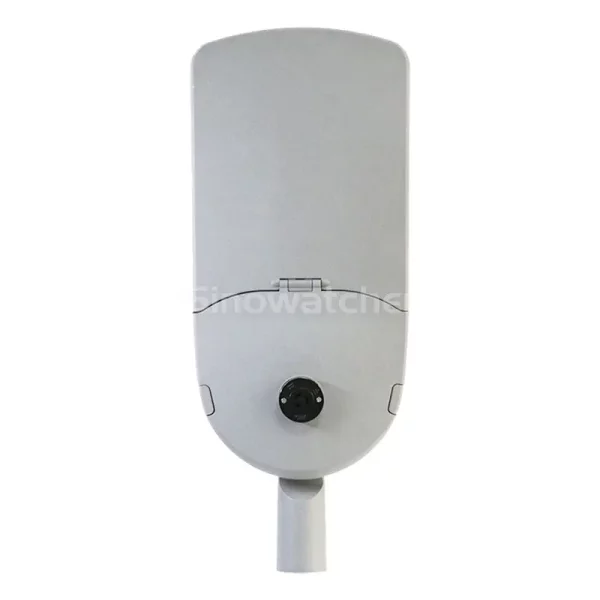

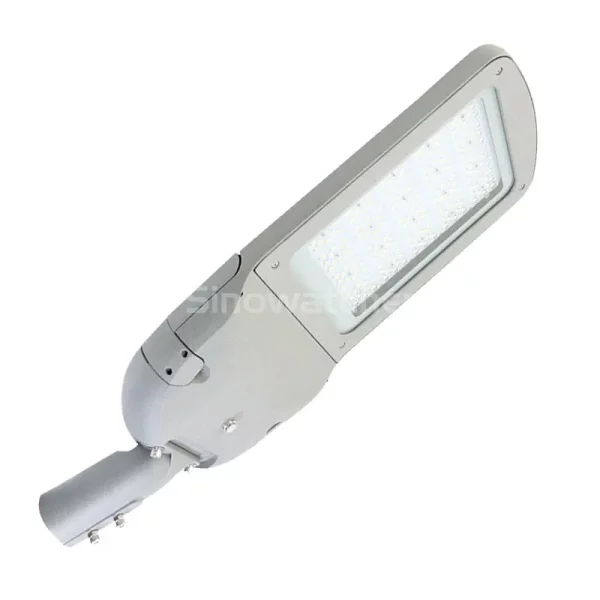

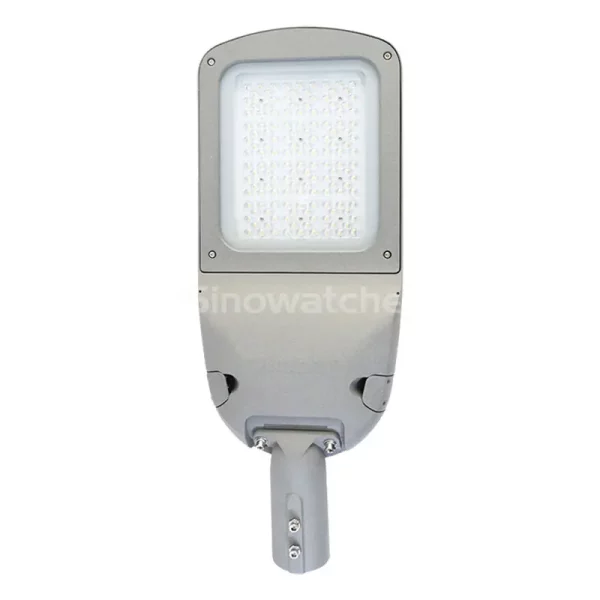

X6 Series LED Street Light
- Universal voltage AC100-277V 50/60Hz.
- External 10KV,20KV surge protect.
- Using high quality SMD3030/5050 chips, High Efficiency 110-130lm/W.
- High Power Factor >0.9, Low THD Driver.
- Die-Casting aluminum body, Dust-proof and waterproof, IP65, IK08.
- 5 Years Warranty, Over 50,000 hours lifetime.
- Available with 0-10V / PWM / DALi Dimming mode, Photocell sensor, Microwave motion sensor.
- Easy tool onsite maintenance and repair.
Share to:
X6 Series LED Street Light Parameter
Electrical
100-277V AC (other input voltage optional)
Total harmonic distortion:<10% at full load
3PIN, 5PIN, or 7PIN NEMA receptacle available
Ratings
Suitable for wet location
Optical enclosure rated
-40℃ -60℃/20%-100%RH
Applied Environment
Marine Environment(corrosion resistant)
Rainstorm (water-proof)( IP65 protection grade)
Snow / Cold Weather (cold-resistant)
Lightning & Grid Surge(external surge protector)
Sand Storm(resistant to sand and dust)
| X6 Series LED Street Light Parameter | |
| Electrical | 100-277V AC (other input voltage optional) |
| Total harmonic distortion:<10% at full load | |
| 3PIN, 5PIN, or 7PIN NEMA receptacle available | |
| Ratings | Suitable for wet location |
| Optical enclosure rated | |
| -40℃ -60℃/20%-100%RH | |
| Applied Environment | Marine Environment(corrosion resistant) |
| Rainstorm (water-proof)( IP65 protection grade) | |
| Snow / Cold Weather (cold-resistant) | |
| Lightning & Grid Surge(external surge protector) | |
| Sand Storm(resistant to sand and dust) | |
Urban roads and residential streets
The X6 model can be installed on public roads, residential routes, and side streets. It can be used with traffic signs and pavement markings.
Factory roads and logistics areas
Internal roads, loading lanes, and warehouse access points need clear night lighting. The all-weather led street light can be matched with bollards, road signs, and warning lights.
Coastal or wet locations
For marine environments, rainstorm areas, or roads with high humidity, the X6 body and external surge option are useful. Road studs and waterproof warning lamps may be added.
Dusty, sandy, or cold-weather roads
The X6 is suitable for sandstorm, snow, and cold areas. Reflective signs, edge markers, and guardrail reflectors can be used in the same layout.
Actual Uses and Road Impact
In actual use, the X6 Series LED Street Light is mounted on poles to illuminate roads, junctions, parking lanes, factory routes, and pedestrian sections. The all-weather led street light gives road users a clearer view of the road surface, roadside edge, bends, and walking areas after dark. It does not replace traffic lights, signs, or markings. It works with them as part of a road lighting arrangement.
LED Street Light Suppliers for Road Projects
The X6 Series LED Street Light is designed for road projects that need stable lighting, outdoor protection, and easier maintenance. It works with AC100-277V input and uses SMD3030 or SMD5050 LED chips for efficient road illumination. As an all-weather led street light, the X6 model is suitable for wet, cold, dusty, coastal, and high-surge environments. Sinowatcher supports buyers and led street light suppliers with product configuration.
Competitive Advantages and Product Combination
The X6 Series can be configured according to project needs. Accessories such as NEMA receptacle, dimming controller, sensor, surge protector, mounting bracket, and input voltage option can be selected before production. This gives led street light suppliers more flexibility when matching the product with different road projects.
The all-weather led street light can also be used with other traffic safety products. At crossings, it may be installed near pedestrian signs and road studs. On bends or road edges, it can work with reflective signs and warning flashers. In parking or factory roads, bollards and direction signs can be added. The lamp provides lighting, while these products provide guidance or warning.
Technical Features
MD3030 or SMD5050 chips are used, with efficiency from 110 to 130lm/W. The output is suitable for streets, service roads, and public routes.
Universal AC100-277V input supports different project markets. Other voltage options can be discussed for specific orders.
The die-casting aluminum body is dust-proof and waterproof, with IP65 and IK08 ratings. This makes the all-weather led street light suitable for rain, sand, dust, cold weather, and outdoor road conditions.
External 10KV or 20KV surge protection can be selected. The driver has power factor above 0.9 and low THD.
The lamp supports 0-10V, PWM, and DALI dimming, with photocell sensor and microwave motion sensor options. Easy onsite maintenance is one practical point.
WHY CHOOSE SINOWATCHER
Sinowatcher manufactures lighting and traffic safety products for project use. The X6 Series offers practical advantages, including LED efficiency, die-casting aluminum housing, IP65 protection, IK08 impact rating, surge protection, dimming options, sensor options, and more than 50,000 hours lifetime. These points make it a suitable all-weather led street light for outdoor road environments.
For led street light suppliers, Sinowatcher can provide model selection, technical documents, accessory matching, customization discussion, and order support. The company follows production and quality-control procedures to meet project specifications. Sinowatcher can support a single all-weather led street light order or batch supply for road lighting projects handled by led street light suppliers. Useful for led street light suppliers handling repeat tenders.
