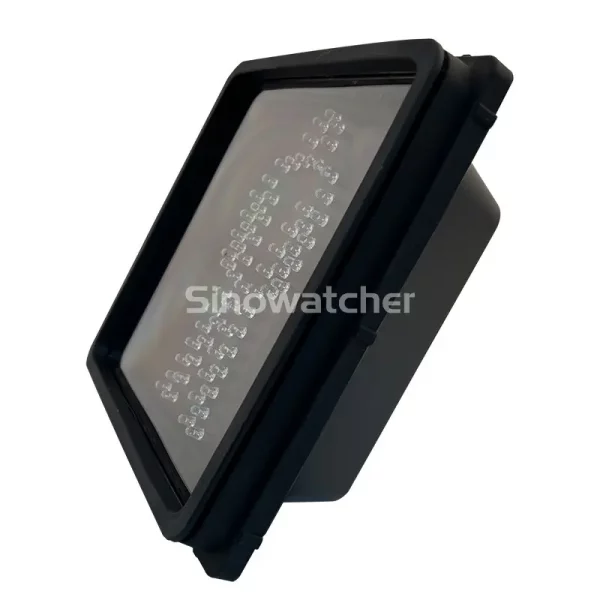

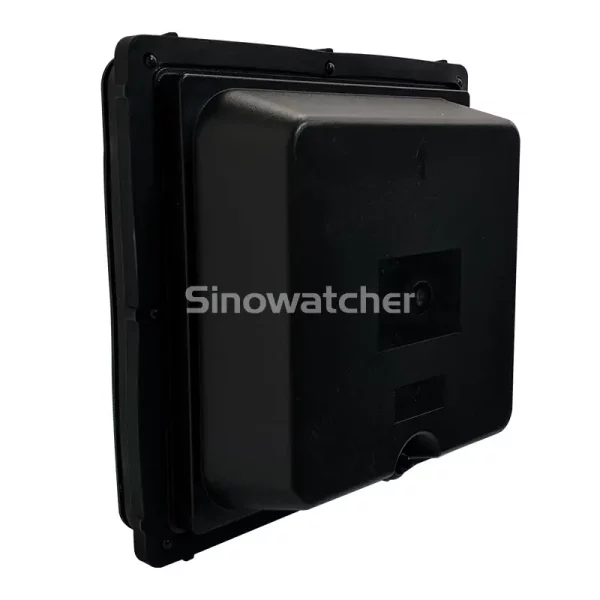

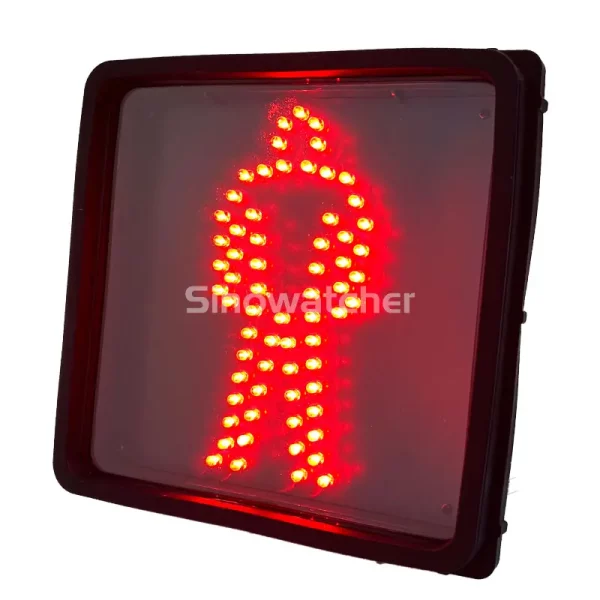

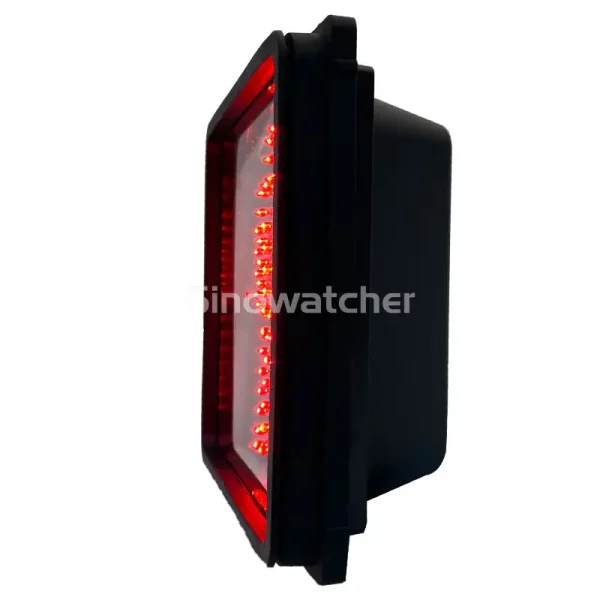

200mm Clear Square Lens Static Red Pedestrian Traffic Light Module
- Wide operating voltage.
- Polycarbonate optical lens – impact resistant.
- Optimal light distribution.
- Anti-phantom effect minimized, optimal viewing angle.
- High intensity LED light source – low energy consumption.
- 5mm LED (DIP) with long life cycle.
- Easy fixation to traffic signal housing.
- Long life cycle – more than 80,000 working hours.
- Compliance with CE, RoHS, EN12368, ISO9001.
Share to:
| 200mm Square Clear Lens Pedestrian Light Module – Static Man | |
| Dimensions | 200×200 mm |
| LED Type | 5mm DIP |
| Optical Performance | Conform to EN12368 standard |
| View Distance | ≥500m |
| Input Voltage | AC 85 V-265 V,AC 42 V , DC 12-24 V |
| Power Factor | ＞ 0.9 |
| IP Level | IP55 |
| Impact resistance | IK 08 and IR3 |
| Working Temperature | -40℃ ~ +80℃ (Meet Class A,B,C acc. To EN12368) |
| Material of Lens/Housing | UV-stabilized polycarbonate |
- Urban road pedestrian crosswalks
- Crossings near schools, communities and commercial areas
- Pedestrian crossings in parks, scenic spots.
Wire Terminals: Available in Y/I-type configurations.
Sinowatcher 200mm Pedestrian Light Module
Sinowatcher’s 200mm Square Clear Lens Static Man Pedestrian Light Module features a concise urban design with a standard standing man icon for clear pedestrian crossing guidance. This pedestrian stop sign module, uses a high-transparency lens and robust polycarbonate casing to boost LED brightness against harsh weather and impacts. As a reliable pedestrian stop LED light module, it delivers low-power operation, even light distribution and minimized phantom effect, effectively boosting pedestrian safety and optimizing road traffic signaling.
Advantages
This pedestrian stop sign module,adopts precision PC lenses to avoid phantom light, with a wide viewing angle and 500-meter visible range.
Fitted with 5mm DIP LEDs, this pedestrian stop LED light moduledelivers steady high brightness and an 80,000-hour service life to lower maintenance expenses.
The pedestrian stop sign module,works with various voltages, compatible with city power grids and off-grid solar traffic systems.
This pedestrian stop LED light moduleoperates stably from -40℃ to +80℃ under extreme weather conditions.
High-grade polycarbonate shell features excellent UV, impact, water and dust resistance for long-term outdoor use.
Standard mounting size enables fast field fitting and effortless module replacement for easy on-site maintenance.
200mm Square Clear Lens Pedestrian Light Module with Static Man ?
This pedestrian stop LED light module delivers 500m high visibility with minimized phantom light. Compatible with multiple voltages and extreme temperatures, it suits municipal and solar-powered pedestrian crossings. Featuring long-lasting 5mm DIP LEDs, rugged polycarbonate housing and quick standard installation, it meets international traffic certifications to ensure stable, low-maintenance outdoor operation.
