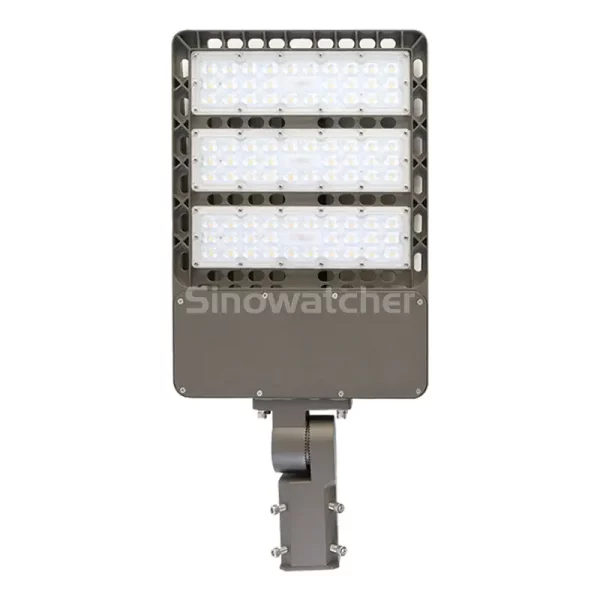

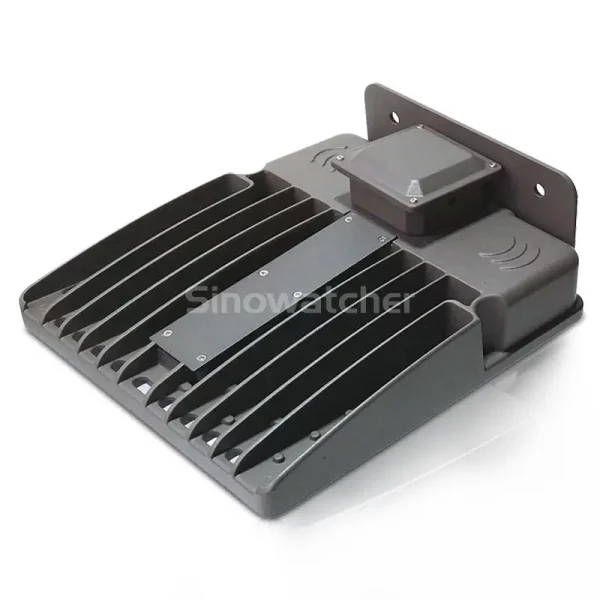

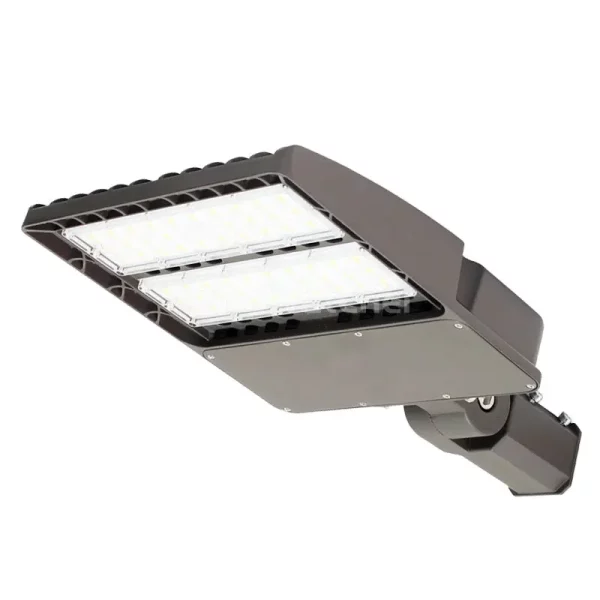

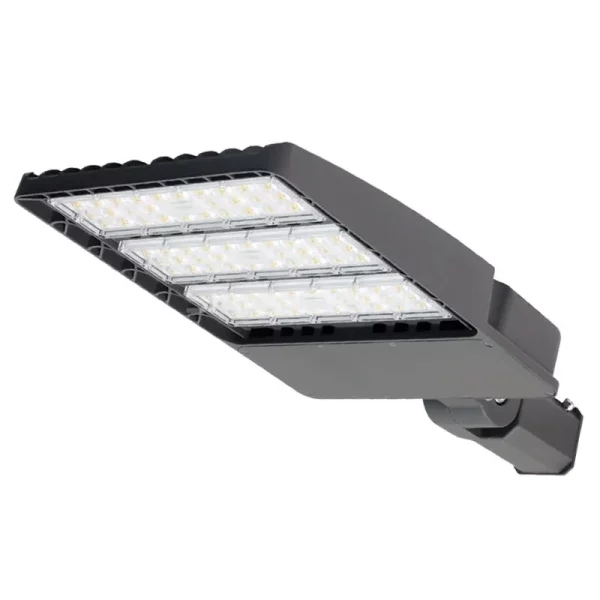

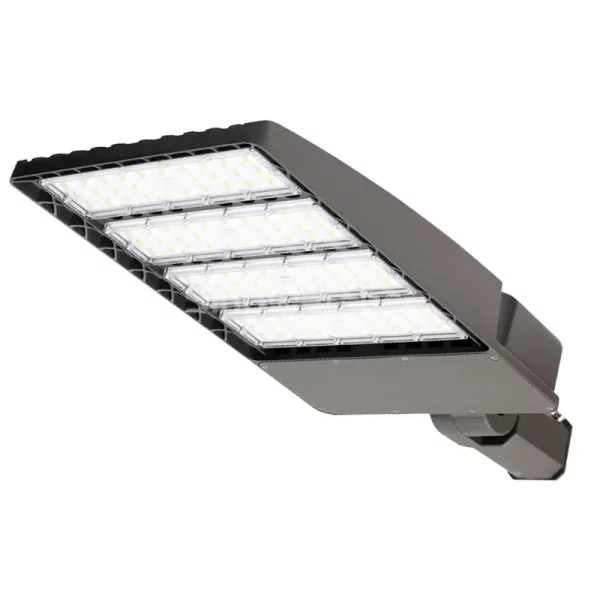

S1 Series LED Street Light
S1 Series LED Street Light
- Universal voltageAC100-277V 50/60Hz.
- External 10KV/20KV surge protection.
- Using high quality SMD3030/5050 chips
- High Efficiency 110-130lm/W.
- High Power Factor >0.9, Low THD Driver.
- Excellent Optics design
- Greatly improve the light utilization and evenness.
- Die-Casting aluminum body, Dust-proof and waterproof, IP65, IK09.
- 5 Years Warranty, Over 50,000 hours lifetime.
- Available with 0-10V / PWM / DALi Dimming mode
- Photocell sensor, Microwave motion sensor.
- Different mounting options (Arm Mount, Slip fitter Mount, Trunnion Mount).
Share to:
| S1 Series LED Street Light Parameter | |
| Electrical | 100-277V AC (other input voltage optional) |
| Total harmonic distortion:<10% at full load | |
| 3PIN, 5PIN, or 7PIN NEMA receptacle available | |
| Ratings | Suitable for wet location |
| Optical enclosure rated =IP65 per (ANSIC136.25-2009) (IEC 60529) | |
| -40℃ -60℃/20%-100%RH | |
| Applied Environment | Marine Environment(corrosion resistant) |
| Rainstorm (water-proof)( IP65 protection grade) | |
| Snow / Cold Weather (cold-resistant) | |
| Lightning & Grid Surge(external surge protector) | |
| Sand Storm(resistant to sand and dust) | |
