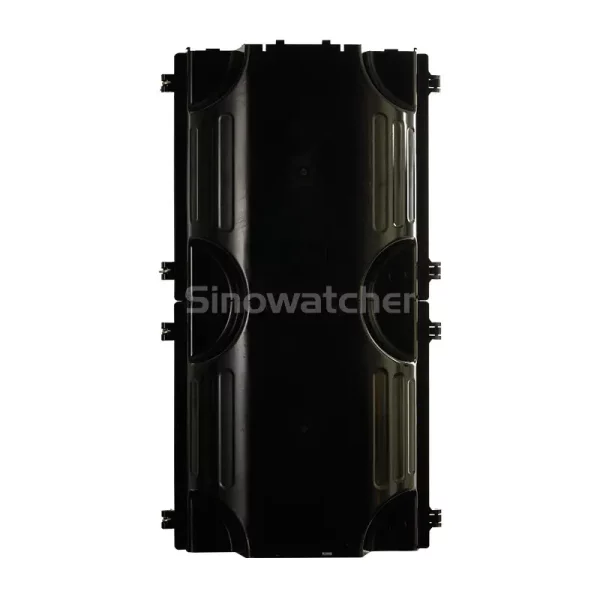

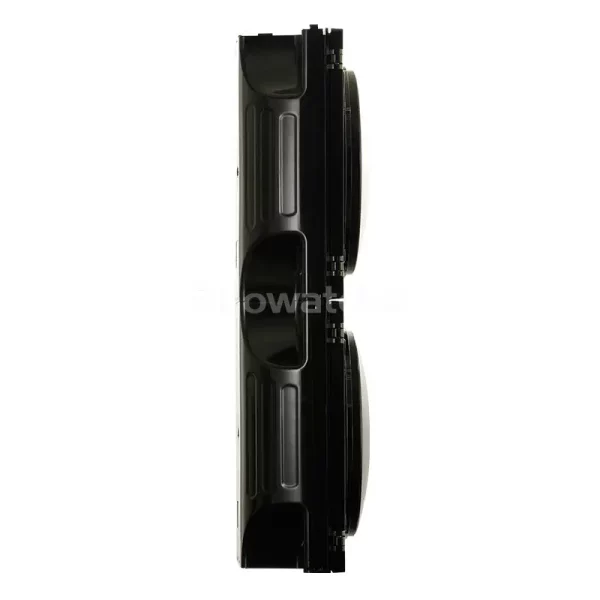

200mm Red Static and Green Dynamic Pedestrian Lights

Wide operating voltage.
Transparent polycarbonate optical lens – impact resistant.
Anti-phantom effect minimized, optimal viewing angle.
High intensity LED light source – low energy consumption.
5mm LED (DIP).
Long life cycle – more than 80,000 working hours.
Highly durable polycarbonate housing; UV-light resistant.
Modular design – easy installation and maintenance.
Easy fixing system with aluminum mount brackets.
Compliance with CE, RoHS, ISO9001 &EN12368.

Share to:

200mm Red Static and Green Dynamic Pedestrian Lights Parameter

Diameter φ 200mm

LED Type 5mm DIP

Optical Performance Conform to EN12368 standard

View Distance ≥300m

Input Voltage AC85-265V, DC12-24V

Power Factor ＞ 0.9

Working Temperature -40℃ ~ +80℃ (Class A,B,C acc. To EN12368)

Material of Lens/Housing UV-stabilized polycarbonate

Color of Housing Black - standard, fir-green/yellow upon qty request

Sinowatcher Smart Pedestrian Red Light System

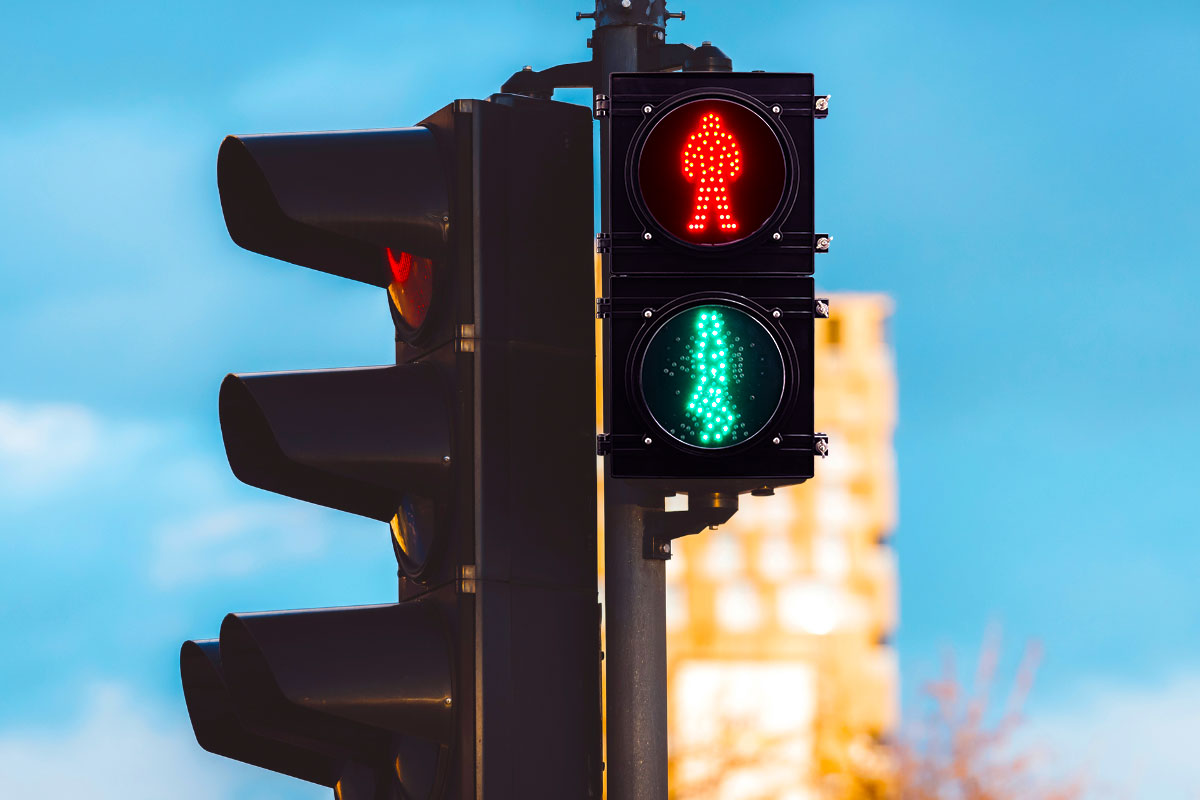

Sinowatcher builds each unit around high-intensity LEDs that stay bright for more than eighty thousand hours. The 200 mm diameter lens uses UV-stable polycarbonate, so color stays true in harsh sun. Drivers see the sign from three hundred meters away and slow down without delay. Walkers understand the stop cue and wait in place. When the light shifts, dynamic pedestrian lights take over with a moving green figure that guides safe motion. Both signals share the same modular body, which means crews swap parts fast and reopen lanes sooner. Cities that add this pair gain visible order, lower crash rates, and calmer traffic flow.

Impact on Roads and Pedestrians

Advanced Pedestrian Red Light with Dynamic Pedestrian Lights

Reduced Pedestrian Hesitation

Dynamic pedestrian lights reduce hesitation because walkers see movement rather than a static symbol. Crossings with animation significantly cut mid-block conflicts as well.

Improved Reaction Time

The pedestrian red light also improves driver response time because its bright, steady glow is hard to ignore.

Easy Maintenance

Maintenance teams appreciate the modular layout as crews replace LED boards in minutes, not hours. Fewer truck rolls also mean lower carbon footprints and happier taxpayers.

Features of Dynamic Pedestrian Lights

Sinowatcher’s pedestrian red light and dynamic pedestrian lights work together to boost crosswalk safety, cut energy waste, and meet global standards:

Wide Voltage Flexibility

The pedestrian red light runs on AC 85-265 V or DC 12-24 V, so retrofits need no extra converters.

Anti-phantom Optics

Dynamic pedestrian lights use a lens that blocks glare and false reflections, keeping messages clear in bright sun.

Energy-smart LEDs

A power factor above 0.9 turns grid power into light with little waste, cutting long-term costs.

Impact-ready Housing

UV-resistant polycarbonate shields both the pedestrian red light and the animated display from weather and knocks.

Quick-mount Brackets

Aluminum mounts let crews install or adjust the module within minutes, reducing lane-closure time.

ABOUT US

Advantages of Traffic Control

Sinowatcher offers flexible options across the whole line of dynamic pedestrian lights. The lens housing can switch from black to fir green or yellow when orders meet quantity thresholds. Countdown timers, acoustic buzzers, or push-button triggers bolt onto the same frame without rewiring. Even the walking speed of the green figure adjusts through simple firmware tweaks, letting agencies match wider crossings or elder-friendly timing. Each accessory stays field-swappable, so a pedestrian red light installed today can adapt to tomorrow’s needs without full replacement.

Practical Scenarios for Red Light Pedestrian Crossing

School Zones

Morning drop-offs need strict signals. The pedestrian red light stops children at the curbside. Dynamic pedestrian lights then guide small groups across. Users can pair this setup with Sinowatcher push-button posts and audible beepers to aid young walkers.

Industrial Sites

Forklifts and trucks cross worker paths all day. A bold pedestrian red light freezes foot traffic until heavy loads pass. When sensors clear the lane, the green animation cues safe movement. Can be combined with rugged LED vehicle signals for full yard control.

Urban Squares

Tourist plazas mix bikes, scooters, and crowds who speak many languages. Universal icons on dynamic pedestrian lights bridge the gap. One can add a solar backup kit and a countdown timer to keep the intersection running during events.

Green Paths

Suburban trails cross feeder roads. Runners spot the pedestrian red light from far away and slow down. The animated walking figure activates only when vehicles halt. Use smart radar triggers and low-glare visors for dawn and dusk visibility.

WHY CHOOSE SINOWATCHER

for Dynamic Pedestrian Lights?

Sinowatcher designs each product to meet international traffic control standards, including EN12368, CE, RoHS, and ISO9001. Key product strengths include wide voltage compatibility, UV-resistant housing, long-life LED technology, and a modular structure that supports fast installation and easy maintenance. All components are manufactured with a focus on durability, energy efficiency, and clear optical performance.

Sinowatcher also emphasizes professional technical support and a strong focus on the user experience. The pedestrian light systems are crafted to adapt to complex urban traffic environments while ensuring pedestrian safety through visible signaling, optimal viewing angles, and anti-phantom lens design. This commitment to quality and compliance makes Sinowatcher a trusted choice for cities, industrial sites, and infrastructure projects.
