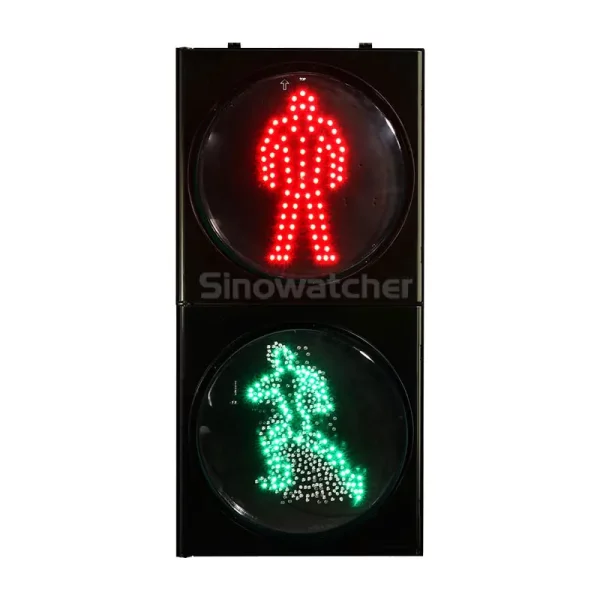

200mm Red Static and Green Running Pedestrian Traffic Light

200mm Red Static and Green Running Pedestrian Traffic Light

Wide operating voltage.
Transparent polycarbonate optical lens – impact resistant.
Anti-phantom effect minimized, optimal viewing angle.
High intensity LED light source – low energy consumption.
5mm/3mm LED (DIP).
Long life cycle – more than 80,000 working hours.
Highly durable polycarbonate housing; UV-light resistant.
Modular design – easy installation and maintenance.
Easy fixing system with aluminum mount brackets.
Compliance with CE, RoHS, ISO9001 &EN12368.

Share to:

200mm Red Static and Green Running Pedestrian Traffic Light parameter

Diameter φ 200mm

LED Type 5mm/3mm DIP

Optical Performance Conform to EN12368 standard

View Distance ≥300m

Input Voltage AC85-265V, DC12-24V

Power Factor ＞ 0.9

Working Temperature -40℃ ~ +80℃ (Class A,B,C acc. To EN12368)

Material of Lens/Housing UV-stabilized polycarbonate

Color of Housing Black - standard, fir-green/yellow upon qty request

Sinowatcher Red Light Pedestrian Crossing Solutions

Sinowatcher blends a bright red light pedestrian crossing with a lively green running pedestrian traffic light in one smart module. The static red symbol tells the pedestrians to wait until the walk phase starts. When the walk phase starts, the green animated figure shows exactly when to move. Our housing and lenses use tough polycarbonate that resists heat, cold, and sun UV radiation. Long-life LEDs shine through fog and glare while using efficient low power.

Green Running Pedestrian Traffic Light Customizatio

Each green running pedestrian traffic light, from Sinowatcher, arrives ready to use. This allows the cities to display the remaining time and flash the last seconds of the phase.

Housing Color

Housing color switches between black, fir green, or yellow on bulk request.

Mounting Brackets

Our mounting brackets adjust for pole or mast arm placement. Additional countdown timers, acoustic buzzers, or push-button triggers snap onto the same frame.

Red Light Pedestrian Crossing Technical Features

Sinowatcher’s red light pedestrian crossing system pairs with a running pedestrian traffic light to guide walkers safely and cut driver confusion. Sinowatcher lists key strengths that make each red light pedestrian crossing stand out:

Wide Operating Voltage

Available in AC version: 85-265 V or DC version: 12-24 V.

Impact-resistant Polycarbonate Lens

Impact-resistant polycarbonate lens keeps the signal sharp even after minor hits.

Anti-phantom Design

Anti-phantom design stops false reflections so pedestrians see the true signal.

High-intensity DIP LEDs

High-intensity DIP LEDs boost visibility past 300 m while cutting energy draw.

Modular Build

Modular build lets crews swap parts fast, lowering maintenance time.

ABOUT US

Impact of GREEN Running Pedestrian Traffic Light on Road Users

A green running pedestrian traffic light shortens guesswork. Walkers track the animated figure and feel confident stepping forward. Studies show clearer cues reduce mid-block conflicts and lower brake-response time. Maintenance teams like the 80,000-hour LED life. Power managers note the factor above 0.9 that trims waste. Over the years, these small gains add up to calmer streets and fewer crashes.

Practical Scenarios for Red Light Pedestrian Crossing

A red light pedestrian crossing paired with a running pedestrian traffic light adds value in many different public and private settings. Here are four key examples:

School Entrances: Outside schools, pedestrian safety needs strong, clear signals. A static red light tells students to wait, even if they’re in a hurry. Once it’s safe, the green running pedestrian traffic light signals a green figure that moves forward. This helps children know when it’s time to cross.
Factory Yards: In industrial zones, foot traffic often intersects with forklifts or loading vehicles. The red light pedestrian crossing gives staff a clear stop point, while the animated green figure shows when it’s safe to move. Rugged pole mounts and reflective signs can be added for extra visibility in busy or low-light areas.
Tourist Plazas: Places filled with tourists often include visitors who speak many different languages. Clear symbols matter more than text. The red light pedestrian crossing and running pedestrian traffic light together offer clear, non-verbal instructions. A countdown timer enhances performance and ensures reliable use, even in open-air areas with heavy foot traffic.
Suburban Trails: Joggers, cyclists, and families using suburban paths need visible and predictable crossing cues. A running pedestrian traffic light helps people time their movement while keeping pace.

Each of these scenarios benefits from combining this pedestrian signal with Sinowatcher’s LED vehicle lights, smart controllers, or other modular accessories. Together, they create smooth intersections and safer shared spaces.

WHY CHOOSE SINOWATCHER

for Red Light Pedestrian Crossing Needs?

Sinowatcher leads with reliable optics, strict EN12368 compliance, and ISO 9001 production. First, product advantages: wide-range voltage, UV-stable housing, and modular service doors mean fewer site visits. Sinowatcher also provides company support in terms of layout advice, wiring diagrams, and spare kits on request. Engineers answer within one business day and ship replacements fast. Training videos cover setup, calibration, and data logging. Together, these services keep every red light pedestrian crossing and green running pedestrian traffic light working at peak clarity for years.
