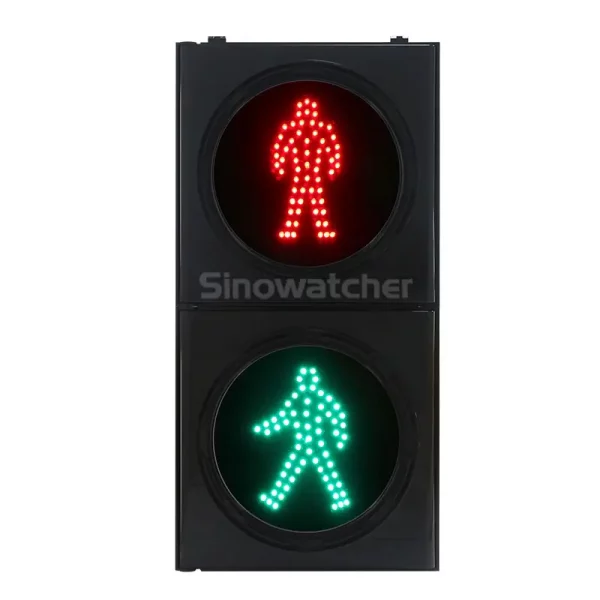

200mm Clear Lens Red and Green Static Pedestrian Traffic Light

200mm Clear Lens Red and Green Static Pedestrian Traffic Light

Wide operating voltage.
Transparent polycarbonate optical lens – impact resistant.
Anti-phantom effect minimized, optimal viewing angle.
High intensity LED light source – low energy consumption.
5mm LED (DIP).
Long life cycle – more than 80,000 working hours.
Highly durable polycarbonate housing; UV-light resistant.
Modular design – easy installation and maintenance.

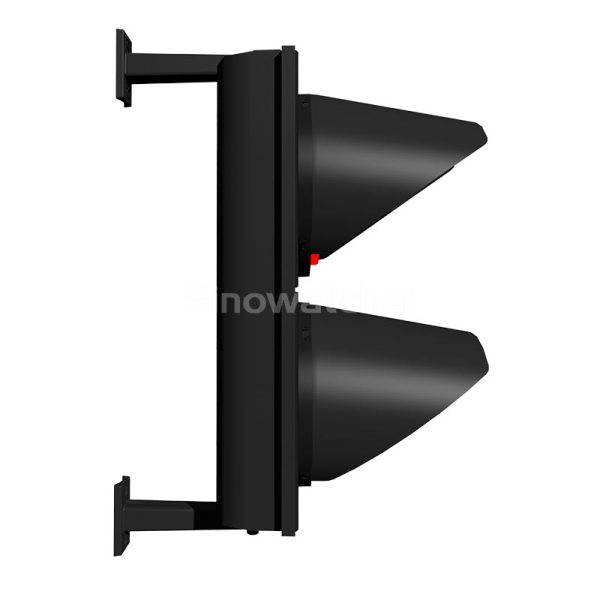

Easy fixing system with aluminum mount brackets.
Compliance with CE, RoHS, ISO9001 &EN12368.

Share to:

200mm Clear Lens Red and Green Static Pedestrian Traffic Light Parameter

Diameter φ 200mm

LED Type 5mm DIP

Optical Performance Conform to EN12368 standard

View Distance ≥300m

Input Voltage AC85-265V, DC12-24V

Power Factor ＞ 0.9

Working Temperature -40℃ ~ +80℃ (Class A,B,C acc. To EN12368)

Material of Lens/Housing UV-stabilized polycarbonate

Color of Housing Black - standard, fir-green/yellow upon qty request

Reliable Pedestrian Crossing LED Signal by Sinowatcher

Sinowatcher’s lens pedestrian traffic light is designed to guide pedestrians with precision and dependability. It uses high-intensity LED technology and impact-resistant polycarbonate lenses to offer a consistent and visible signal, even under tough weather. Cities and towns rely on the pedestrian crossing LED signal to manage foot traffic and reduce crossing risks. If you’re managing a street, public space, or transit system, a well-built pedestrian light system is essential.

Advantages of Pedestrian Crossing LED Signal in Urban Systems

Customizable

A pedestrian crossing LED signal brings measurable benefits to traffic systems. Each of our lens pedestrian traffic light models can be customized to meet the specific needs of a street, campus, or transit stop. Custom housing colors, voltages, and bracket configurations are available.

Modular Design

The lights are modular, making installation faster and maintenance simpler. Their UV-stabilized housing withstands sunlight, keeping the unit effective over time. These benefits help cities save energy, reduce replacement costs, and improve pedestrian compliance at crosswalks.

Technical Features of Lens Pedestrian Traffic Light

Sinowatcher lens pedestrian traffic light with energy-saving pedestrian crossing LED signal. Durable, visible, and compliant with global safety standards.

Impact-Resistant Lens

Made with transparent polycarbonate, the lens resists shattering and supports long-term use.

Efficient LED Lighting

The 5mm DIP LED system consumes low power and produces high brightness, increasing visibility across distances.

Wide Voltage Support

Operates between AC85-265V and DC12-24V, allowing flexible use in different locations.

Extended Service Life

Built to last over 80,000 hours, reducing the need for frequent maintenance.

High Visibility

Maintains a view distance of over 300 meters and conforms to EN12368 standards for safety and clarity.

ABOUT US

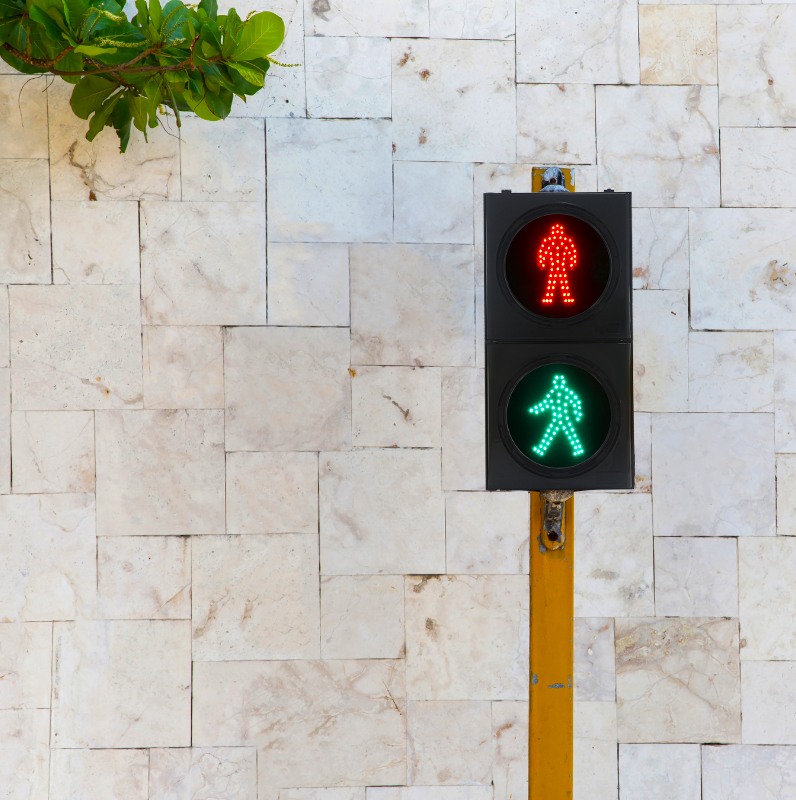

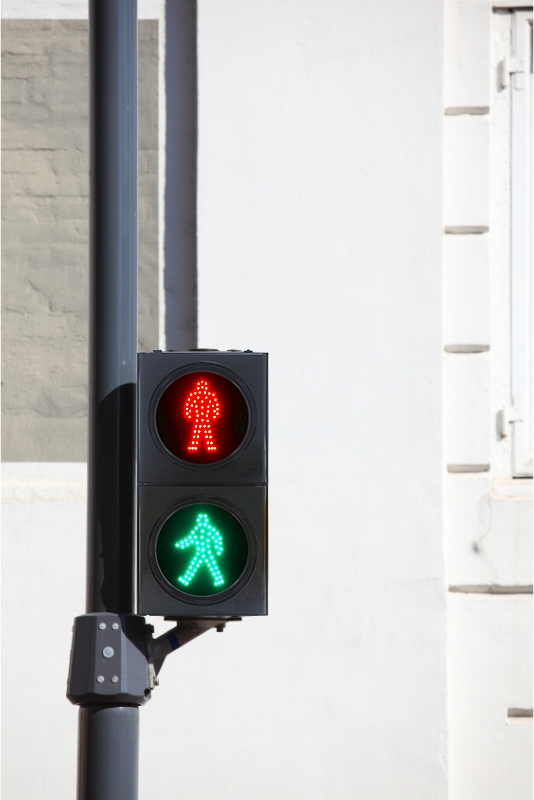

Application of Lens Pedestrian Traffic Light

Busy Intersections: Urban intersections benefit most from lens pedestrian traffic light systems. Their clear signals help prevent pedestrian confusion and driver delay. Combine them with audible pedestrian signals for inclusive access.
School Zones: In school areas, visibility is very important. These lights, paired with flashing warning signs and crossing guards, enhance child safety during arrival and dismissal.
Public Transportation Hubs: Transit areas often see high pedestrian volume. Installing a pedestrian crossing LED signal improves flow and avoids bottlenecks. Combine it with countdown timers for better time management.
Event Venues and Parks: Places with seasonal or irregular foot traffic, like parks or stadiums, need temporary but clear control. Our lens pedestrian traffic light is easy to install and remove as needed.

Purpose and Impact of Our Pedestrian Light Products

Our pedestrian lights help create safer roads for everyone. The lens pedestrian traffic light improves how pedestrians and vehicles interact. With the help of pedestrian crossing LED signal features, crossings become clearer and more predictable. This reduces confusion and enhances both walkability and driver awareness. The result is fewer accidents and a smoother traffic experience overall.

WHY CHOOSE SINOWATCHER

for Lens Pedestrian Traffic Light Solutions?

Our lens pedestrian traffic light models meet global standards, including CE, RoHS, ISO9001, and EN12368. We offer reliable performance and energy savings backed by consistent product testing. The pedestrian crossing LED signal units are modular, durable, and designed for low maintenance. Our services include full customization, responsive support, and dependable shipping. By choosing Sinowatcher, you are choosing clarity, safety, and long-term value.
