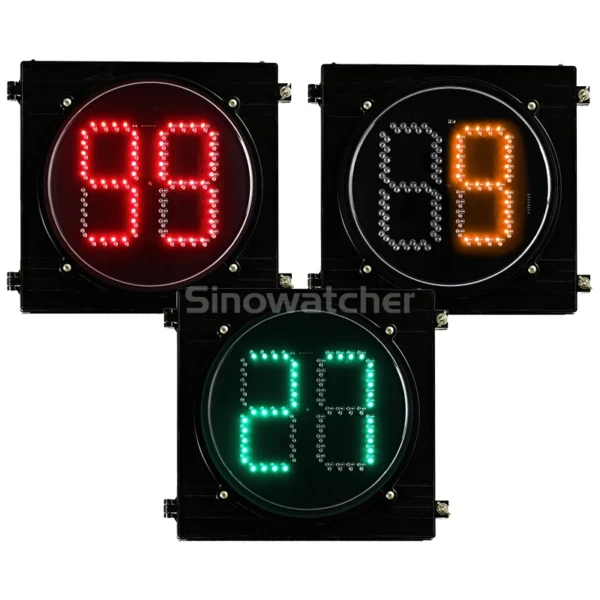

300mm Tri-Color Two-digits Traffic Light Countdown Timer
300mm Tri-Color Two-digits Traffic Light Countdown Timer
- Wide operating voltage.
- Transparent polycarbonate optical lens – impact resistant.
- Anti-phantom effect minimized, optimal viewing angle.
- High intensity LED light source – low energy consumption.
- 5mm LED (DIP).
- Long life cycle – more than 80,000 working hours.
- Highly durable polycarbonate housing, UV-light resistant.
- Modular design – easy installation and maintenance.
- Easy access using of wingnuts open system.
- Fixation system with L-shaped/arm-shaped mounting brackets.
- Compliance with CE, RoHS, EN12368, ISO9001.
Share to:
| 300mm Tri-Color Two-digits Traffic Light Countdown Timer Parameter | ||
| Diameter | φ 300mm | |
| Digits | 2 digits - max 88 | |
| LED Type | 5mm DIP | |
| Optical Performance | Conform to EN12368 standard | |
| Input Voltage | AC85-265V, DC12/24V | |
| Power Factor | ＞ 0.9 | |
| Working Temperature | -40℃ ~ +80℃ (Class A,B,C acc. To EN12368) | |
| Material of Lens/Housing | UV-stabilized polycarbonate | |
| Color of Housing | Black - standard, fir-green/yellow upon qty request | |
