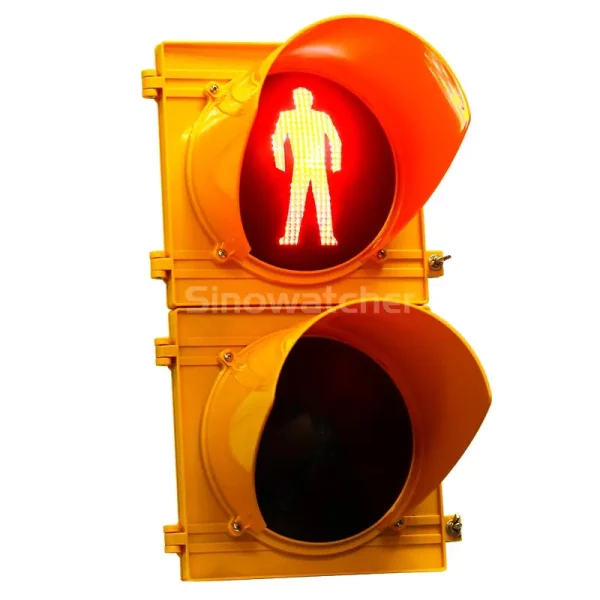

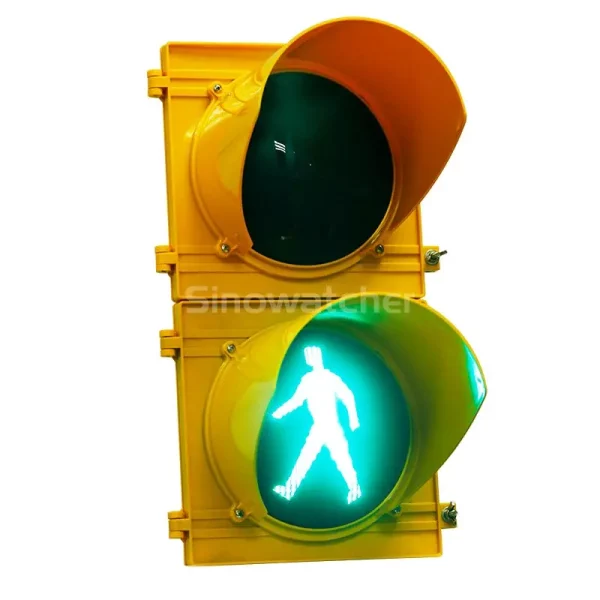

Luces de peatones rojas y verdes de alto flujo de 200 mm

Luces para peatones
Luces para peatones
Luces para peatones
Luces para peatones
Luces para peatones
Luces para peatones
Luces para peatones
Luces para peatones
Luces para peatones
Luces para peatones

Luces de peatones rojas y verdes de alto flujo de 200 mm

  • Amplia tensión de funcionamiento.
  • Lente tintada de policarbonato de aspecto incandescente.
  • Lente fresnel óptica para una distribución uniforme de la luz.
  • Efecto antifantasma minimizado, ángulo de visión óptimo.
  • Excelente rendimiento óptico con LED SMD de alta luminosidad.
  • Bajo consumo de energía con fuente de luz LED.
  • Larga vida útil: más de 80.000 horas de trabajo.

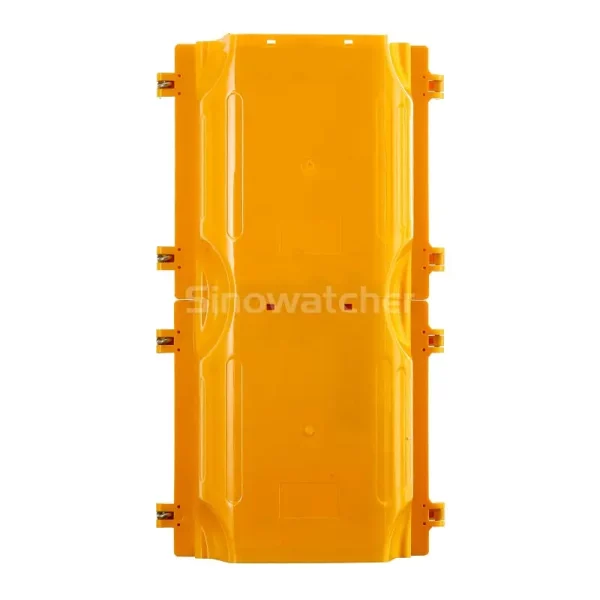

  • Carcasa de policarbonato de gran durabilidad, resistente a los rayos UV.
  • Diseño modular: fácil instalación y mantenimiento.
  • Fácil acceso mediante el sistema abierto de tuercas de mariposa.
  • Sistema de fijación con soportes en forma de L o de brazo.
  • Conformidad con CE, RoHS, EN12368, ISO9001.
Contáctenos

Compartir con:

Luces de peatones rojas y verdes de alto flujo de 200 mm Parámetros
Diámetro φ 200mm
Tipo LED SMD de alto flujo
Rendimiento óptico Conforme a la norma EN12368
Ver distancia ≥300m
Tensión de entrada AC85-265V, AC26-55V, DC10-30V
Factor de potencia ＞ 0.9
Temperatura de trabajo -40℃ ~ +80℃ (Clase A,B,C según EN12368)
Material de la lente/carcasa Policarbonato estabilizado a los rayos UV
Color de la carcasa Negro - estándar, verde abeto/amarillo bajo pedido





Road Safety with High Flux Pedestrian Walking Light

Pedestrian safety depends on how clearly and quickly signals are seen. The pedestrian walking light built with high flux SMD LED technology offers strong visibility in all kinds of weather. The polycarbonate tinted lens looks like traditional incandescent lights but performs better. The wide viewing angle and even light spread from the fresnel lens help drivers and pedestrians act without confusion. Energy use stays low, while maintaining high level of brightness.

Why High Flux Pedestrian Lights Improve Traffic Modules

Low Maintenance Cost

In traffic light modules, high flux pedestrian lights offer an efficient and low-maintenance choice. Each component, from the housing to the LED board, can be adapted to customer requirements.

Compatible with Both Old and New Systems

These lights work well with both old and new control systems. Custom housing colors and mounting styles make installation easy on different poles or brackets. They blend into city environments while staying functional.

Quality Assurance and Durability

The lights also meet major safety standards like EN12368 and ISO9001. This gives buyers confidence in quality and safety. Each unit is resistant to UV and weather damage, making it a solid choice for long-term road use.

Technical Features of Our High Flux Pedestrian Lights

High flux pedestrian lights are designed for reliability. Key technical features include:

Supports AC85-265V, AC26-55V, and DC10-30V, giving flexibility for different infrastructure setups.

High flux SMD LEDs provide a strong light signal without glare.

The optical fresnel lens keeps the light even, clear, and visible from wide angles.

Each unit lasts more than 80,000 hours and is easy to maintain due to modular design.

Polycarbonate housing resists UV light, heat, and moisture.
NOSOTROS
VER MÁS

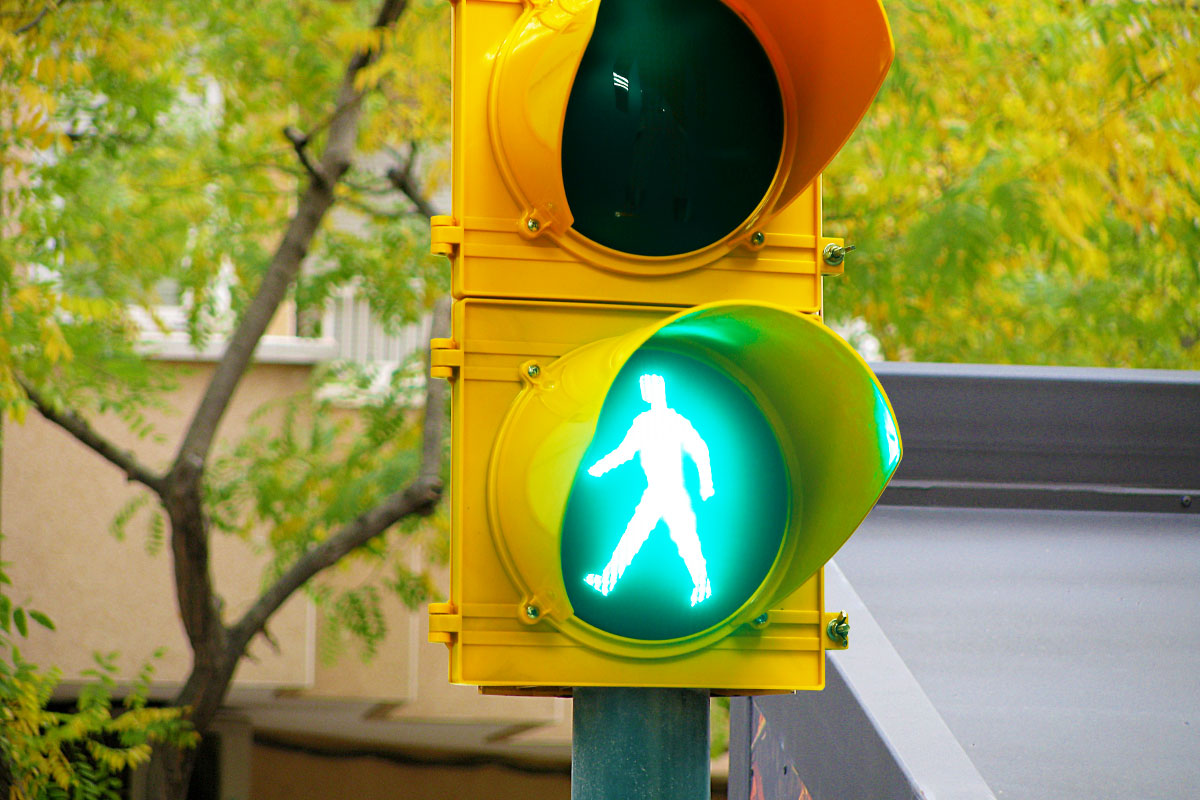

Pedestrian Walking Light, High Flux Pedestrian Lights (4)

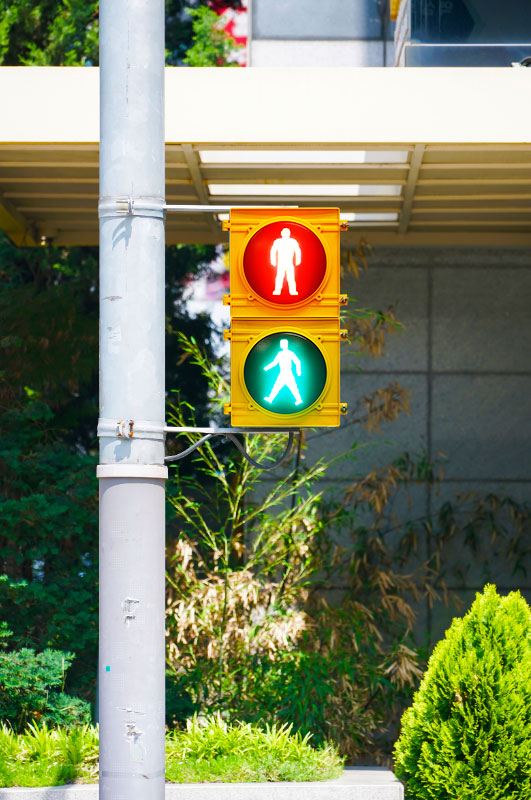

Pedestrian Walking Light, High Flux Pedestrian Lights (2)

Practical Application of Pedestrian Walking Light

The pedestrian walking light is applicable in multiple traffic settings:

  • Busy urban intersections: Used alongside vehicle traffic lights and pedestrian push buttons for safety timing.
  • School zones: Can be paired with solar-powered warning lights and countdown timers.
  • Transit hubs: Useful in bus stations and train crossings where foot traffic must be directed clearly.
  • Industrial campuses: Installed with access gates and alarms for workforce movement.

In each setting, the lights combine well with audible devices and countdown timers to boost user clarity.

How Pedestrian Walking Light Helps Roads and Pedestrians

The pedestrian walking light is highly effective in reducing road accidents. Its fast signal time, strong brightness, and no-glare display make sure that pedestrians and drivers can see clearly in order to respond correctly. The low energy draw makes it suitable for eco-conscious cities. With its long lifespan, the maintenance costs are cut down, which keeps the intersections safe without frequent outages.

Contacto
VER MÁS
POR QUÉ ELEGIR SINOWATCHER

for High Flux Pedestrian Lights?

Sinowatcher produces pedestrian lights that meet CE, RoHS, and EN12368 standards. Our lights stand out for:

Strong and durable under real conditions;
Full compliance with safety certifications;
Flexible customization for voltage, housing, or mounting;
Global support and fast lead times.

We help customers design, install, and maintain pedestrian walking light systems that fit their local needs. From one unit to full system planning, Sinowatcher offers consistent service for traffic safety projects worldwide.
